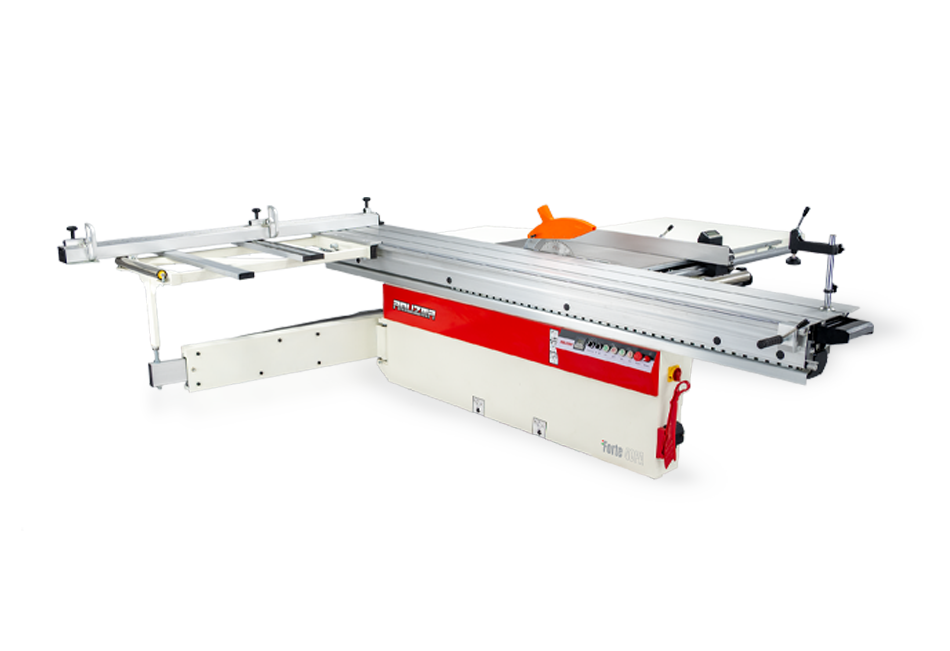

Panel saw

Forte 40PA

Click ‘Get Free Quote’ to customize

Powerful & Industrial

The 65BS combines advanced bonding technology with stable operation, ensuring clean edges, reduced material waste, and high-efficiency production.

High Press Capacity

Equipped with a powerful 100-ton hydraulic system, ensuring uniform and strong bonding across veneer doors for durable and high-quality production results.

Uniform Pressure

Advanced hydraulic design provides even pressure across the entire panel surface, preventing bubbles, gaps, or uneven bonding during veneer pressing.

Heavy-Duty Structure

Built with a rigid steel frame construction for maximum stability, vibration resistance, and long-term industrial performance in demanding production environments.

Efficient Operation

Designed for smooth and user-friendly operation, improving workflow efficiency while maintaining consistent pressing quality for commercial door manufacturing.

Performance Benefits

Power, Precision, Profitability

Flawless Edge Quality

Equipped with a strong motor system that ensures consistent cutting power for hardwood, softwood, and heavy-duty industrial tasks.

Increased Production

Delivers accurate and smooth cutting performance for straight, curved, and detailed woodworking applications with minimal material wastage.

Long-Term Reliability

Heavy-duty frame construction reduces vibration, ensuring safer operation, better control, and long-lasting machine durability.

Operational Excellence

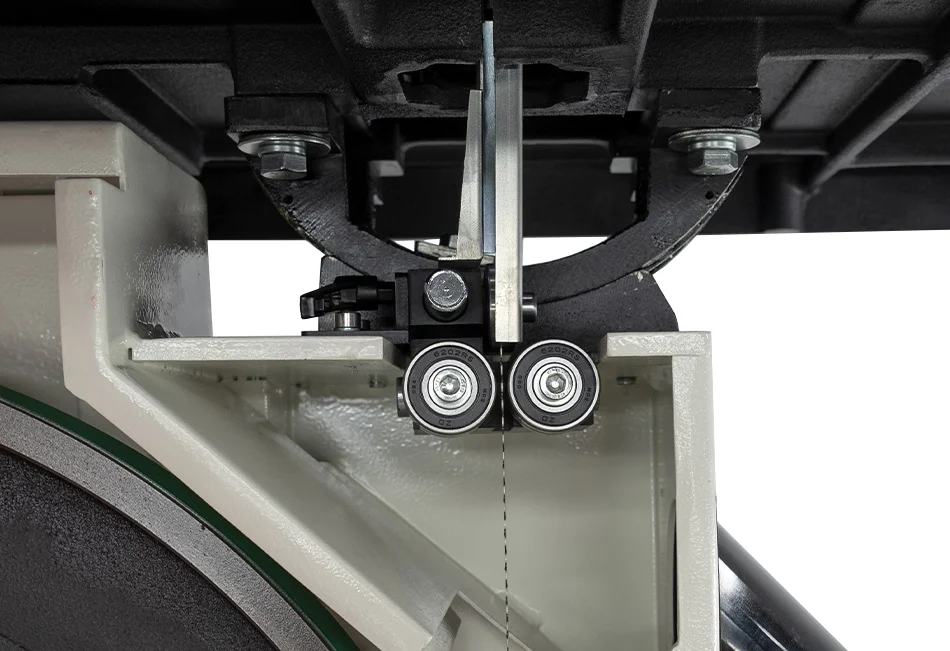

Superior Edge Performance

Panel saw Forte 40PA delivers smooth, precise, and durable edge bonding for professional woodworking applications. Designed for consistent operation and clean finishing, it enhances productivity while ensuring high-quality results in every project.

Production

Suitable for industrial woodworking, the Panel saw Forte 40PA provides reliable performance, durability, and consistent cutting results for hardwood, softwood, and panel materials.

Durable Performance

Built with a strong frame and powerful motor, this machine delivers stable operation with reduced vibration. It enhances cutting accuracy and improves overall productivity.

Reliable Productivity

The Panel saw Forte 40PA is designed for precise and efficient wood cutting operations. It ensures smooth performance for straight, curved, and heavy-duty cutting applications in professional workshops.

Specifications

  • Main Blade Diameter : 315 mm
  • Main Blade Speed : 4500 rpm
  • Scoring Blade Diameter : 120 mm
  • Scoring Blade Speed : 8000 rpm
  • Blade Tilt : 0 – 45°
  • Max Depth of Cut @ 45° : 67 mm
  • Max Depth of Cut @ 90° : 95 mm
  • Max Rip Capacity
  • Standard : 1250 mm
  • Option : 900 mm
  • Sliding Beam Size
  • Standard : 1600 × 360 mm
  • Option : 1200 × 360 mm
  • Sliding Beam Cutting Capacity
  • Standard : 1600 mm
  • Option : 1250 mm

Machine Dimensions

  • Table Size : 800 × 550 mm
  • Dust Extraction Outlet : 120 mm
  • Main Motor Output
  • 3 × 380V : 5 kW
  • Scoring Motor Output : 0.75 kW
  • Angle Cutting Device : 940 × 150 × 1500 mm / 44.5 kg
  • Net / Gross Weight : 400 / 460 kg
  • Package Size : 1300 × 1000 × 1100 mm
